The Zeus60 Static Compactors: Side Comb BL-Gate is a powerful and versatile waste solution designed for handling large volumes of commercial and industrial waste. Its side-mounted comb bin lift with gated access provides safe, controlled, and efficient loading.
| Specification | Details |
|---|---|
| Charge Box Volume | 1.8 m³ |
| Motor Size | 7.5 / 11 kW |
| Cycle Time | 45 sec |
| Power Supply | 415V 3 Phase |
| Ram Bore | 125 mm |
| Ram Stroke | 1600 mm |
| Compaction Force | 25 Tonne |
| Length | 3500 mm |
| Width | 1950 mm |
| Machine Weight | 2500 kg |
| Running Pressure | 2401 PSI (165 bar) |
| Charge Box Head Face Area | 1.08 m² |
The Zeus60 Static Compactors: Side Comb BL-Gate is a high-performance waste management solution, built to handle a wide range of compressible materials in demanding commercial and industrial environments. Designed for strength, reliability, and continuous operation, it offers an efficient way to reduce waste volume, improve site organisation, and lower disposal costs.

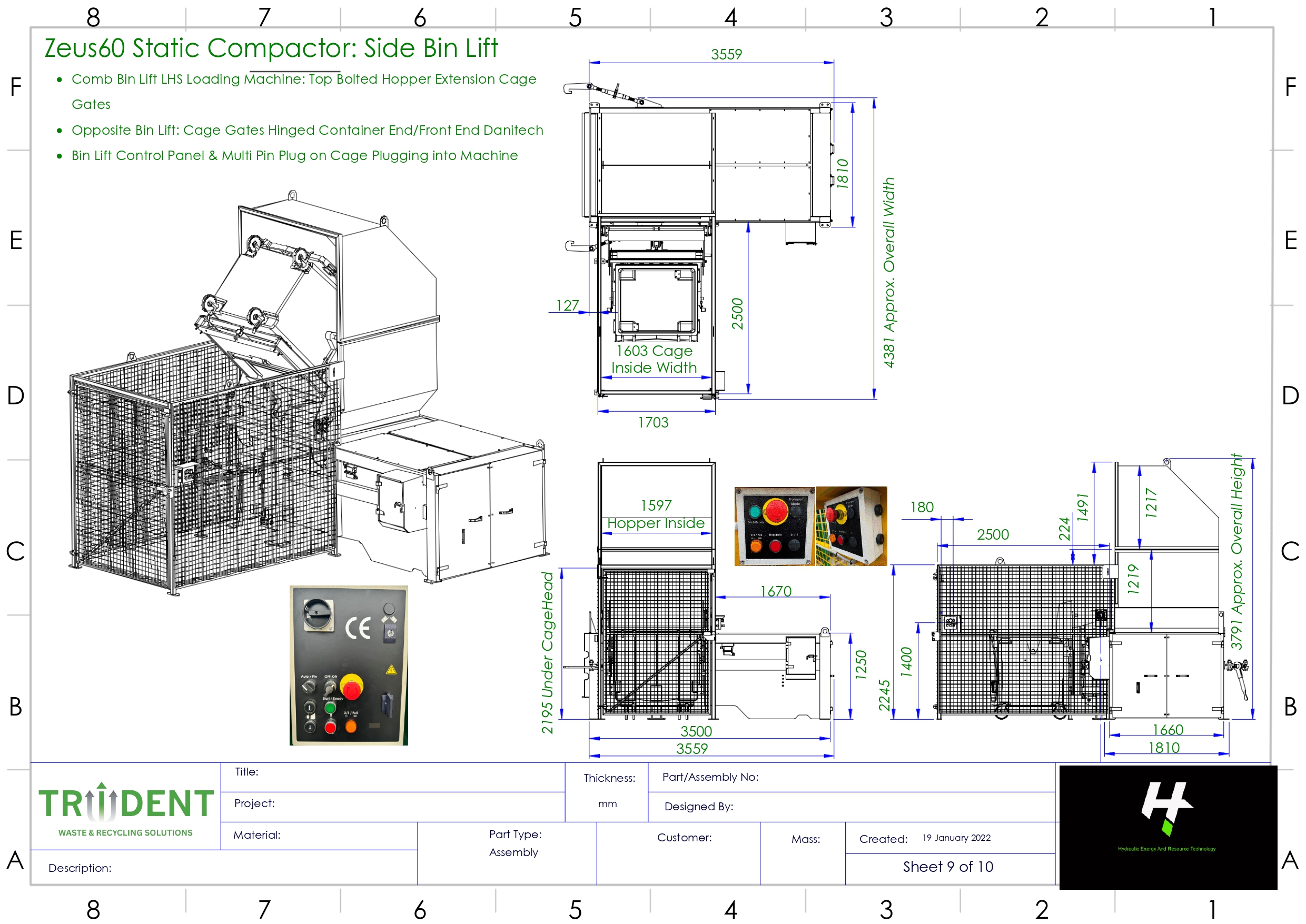

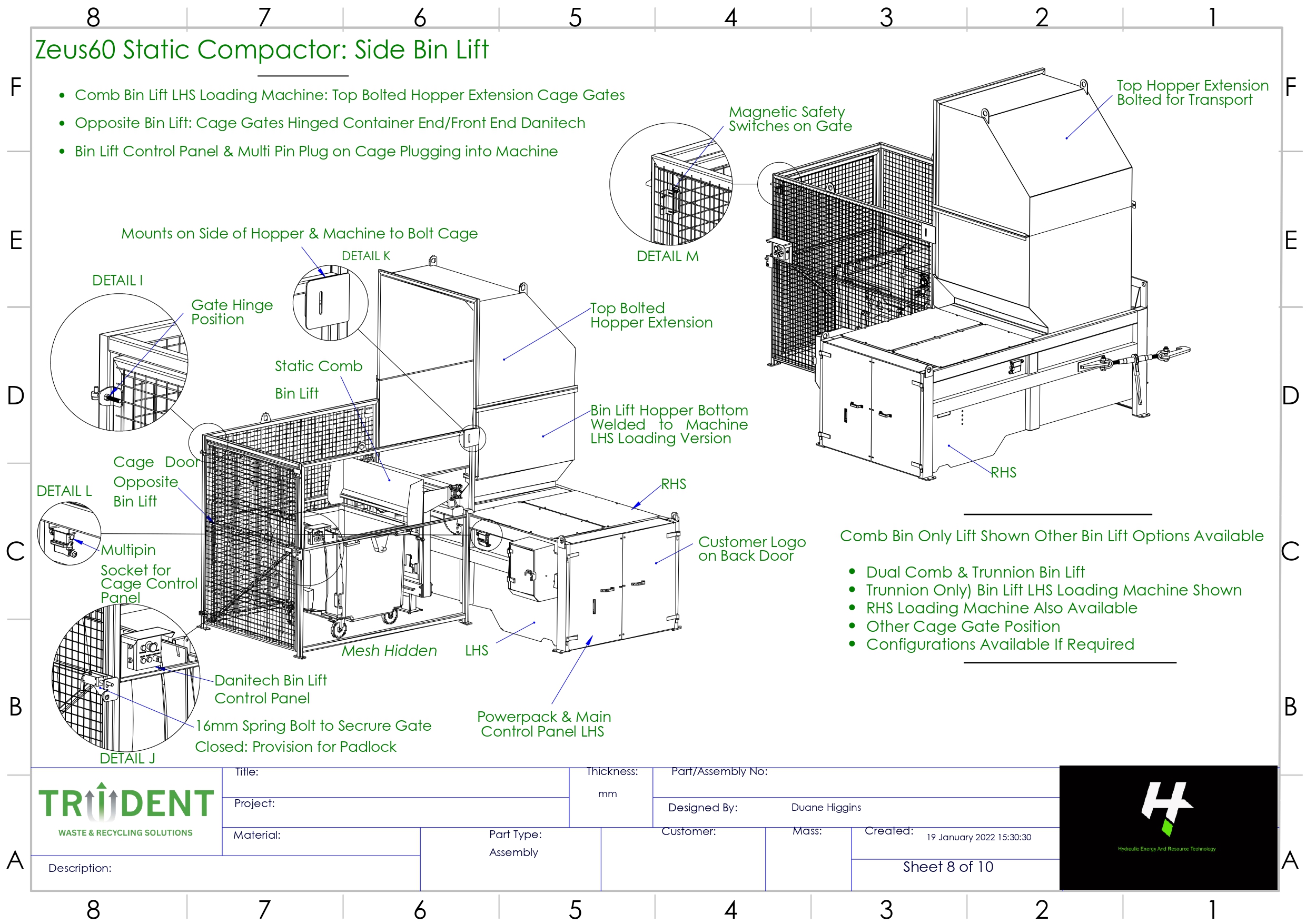

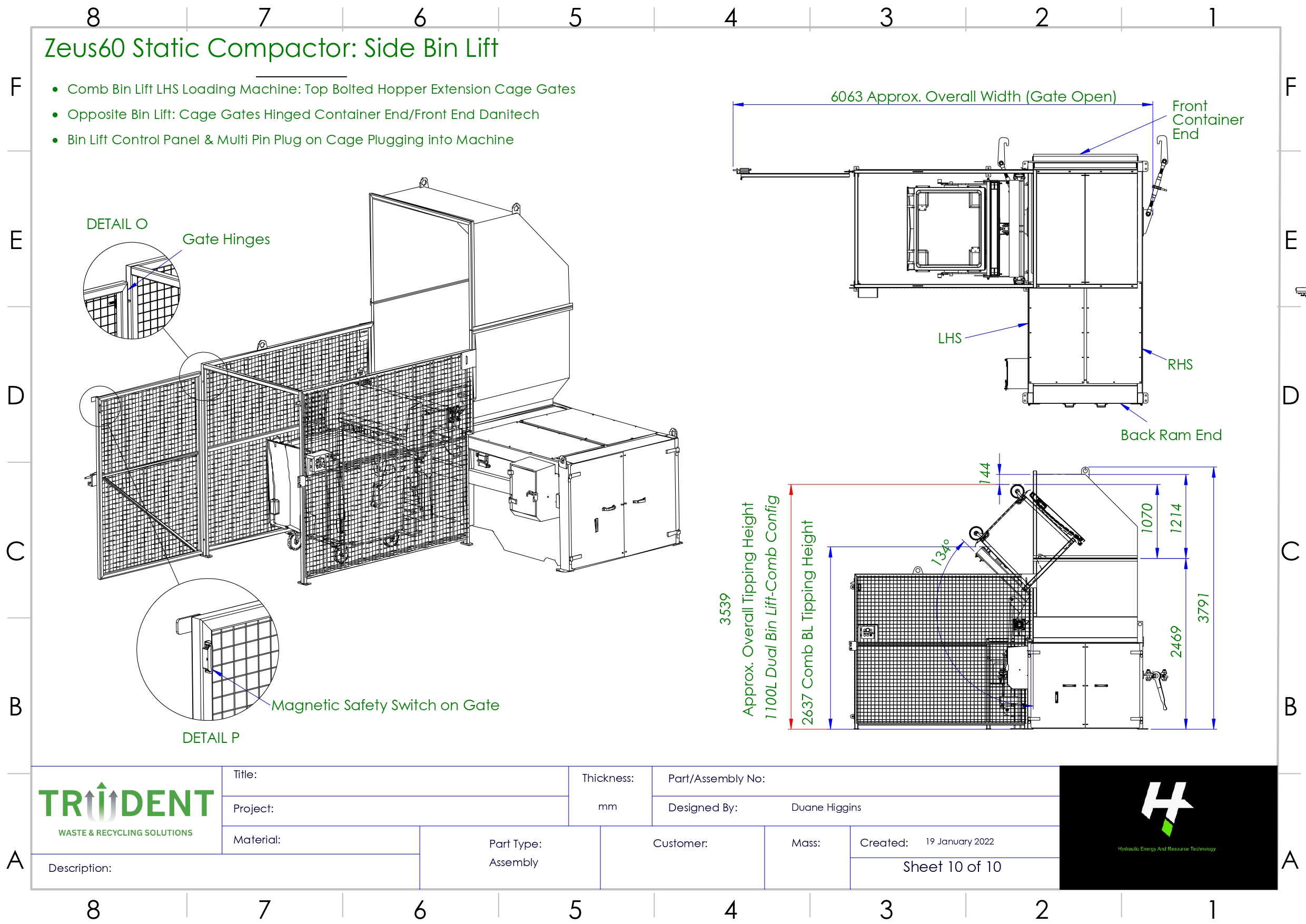

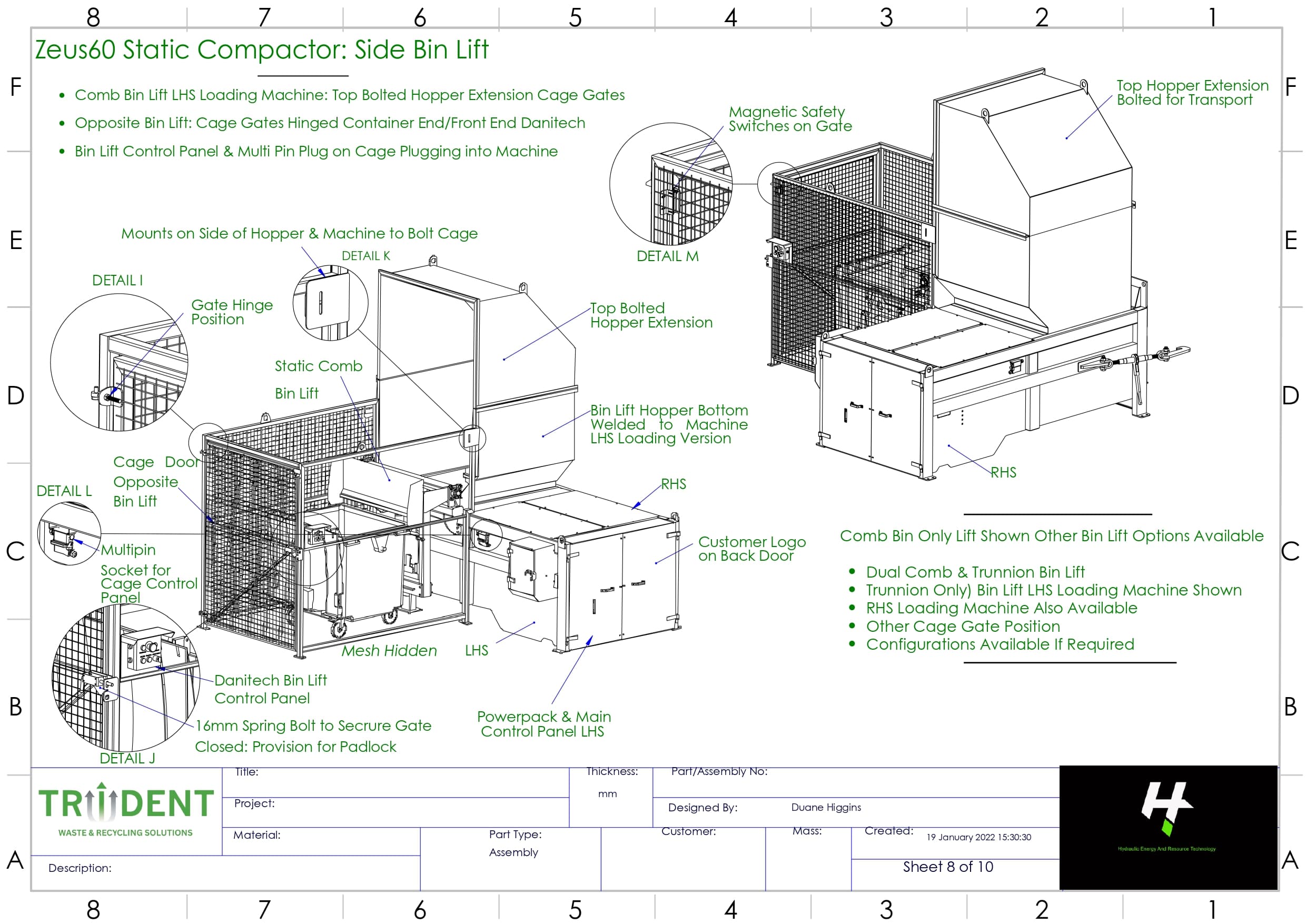

This model features a side-mounted comb bin lift with a gated loading system, providing enhanced safety and control during operation. The gated design helps protect operators while ensuring waste is loaded securely and efficiently, making it ideal for busy sites where safety and workflow are key considerations.
As a static compactor, the Zeus60 consists of a fixed compaction unit paired with a detachable container. This allows the compactor to remain in position while only the container is removed and replaced when full, ensuring uninterrupted operation and minimal disruption to daily activities.
Work with experts who know the ins and outs of waste management.
High-spec, robust systems that minimise downtime.
PLC-driven systems managing complex, multi-function machinery.
Designed for harsh, high-demand waste and recycling environments.
Whether you’re planning a new installation, upgrading existing equipment, or exploring hydraulic solutions for your operation, our team is ready to support your project with practical engineering expertise.
