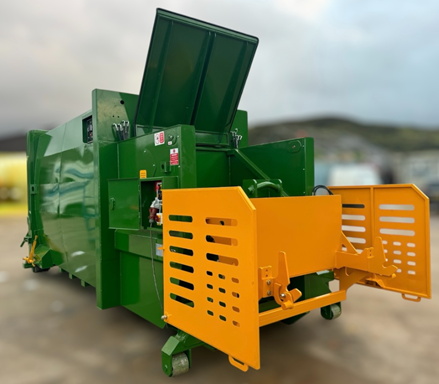

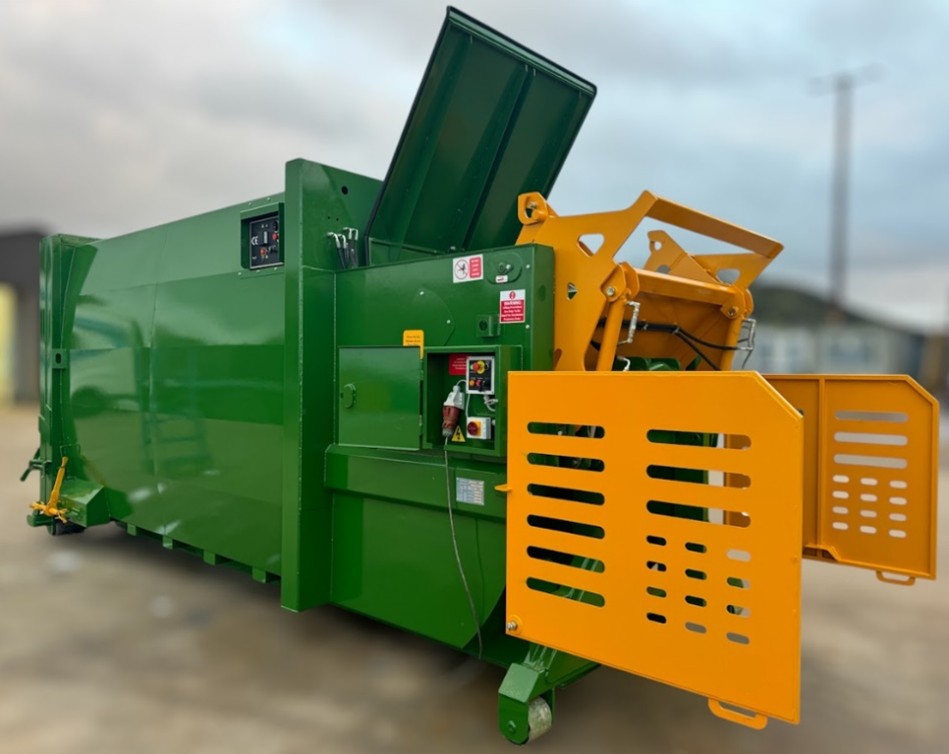

The Poseidon Wet Waste Portable Compactor with WW Trunnion Bin Lift is a heavy-duty and hygienic solution for managing wet waste in high-volume environments. Featuring a ratchet-type turnbuckle locking device, it provides a strong, secure seal while remaining quick and easy to operate.
| Specification | Details |
|---|---|
| Charge Box Volume | 24 m³ |
| Motor Size | 5.5 kW |
| Cycle Time | 30 seconds per cycle (5 cycles = 2 min 30 sec total) |
| Power Supply | 415V 3 Phase |
| Ram Bore | 100 mm Bore (2 No. Rams) |
| Rod Size | 70 mm Rod |
| Compaction Force | 24 Tonne |

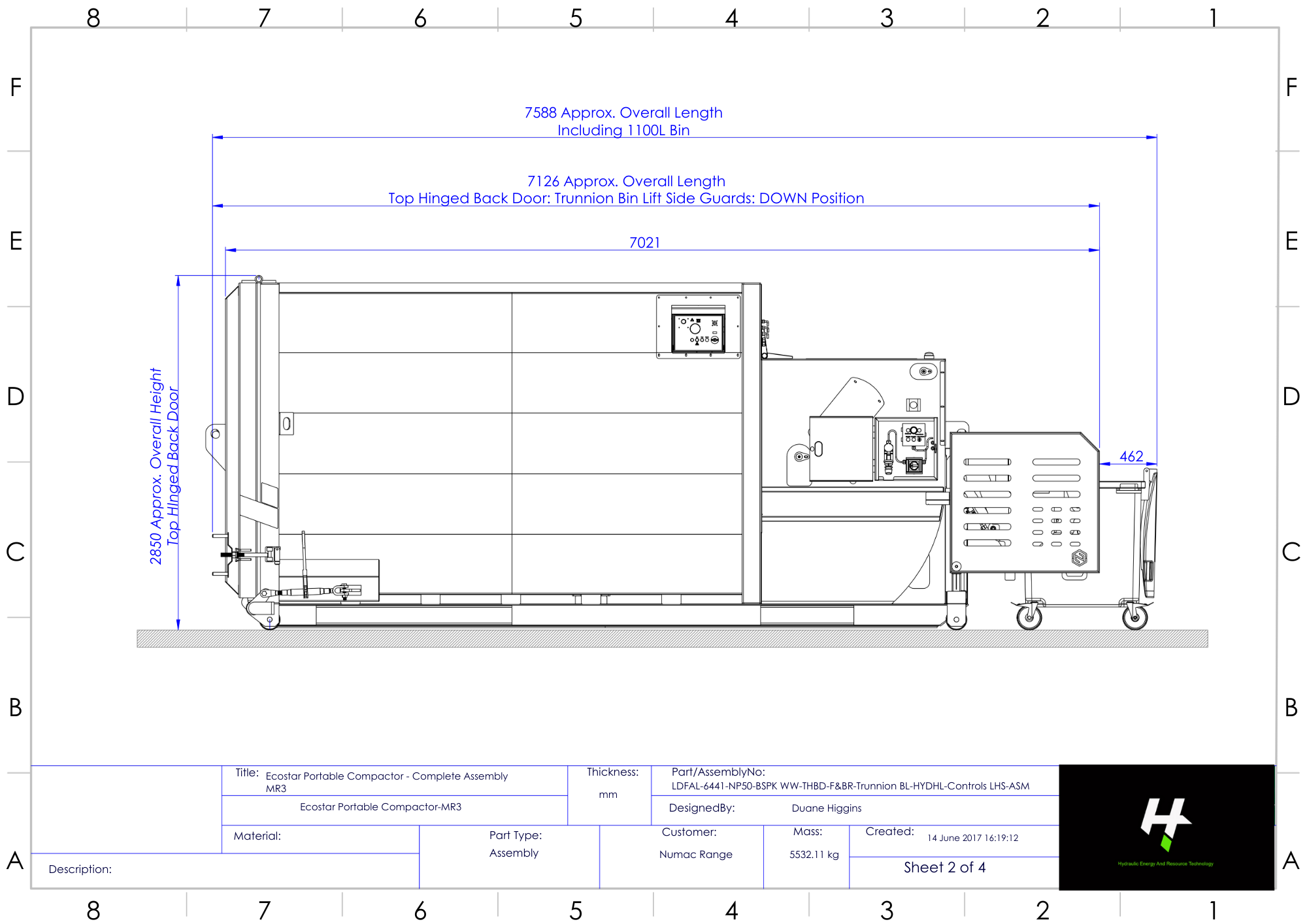

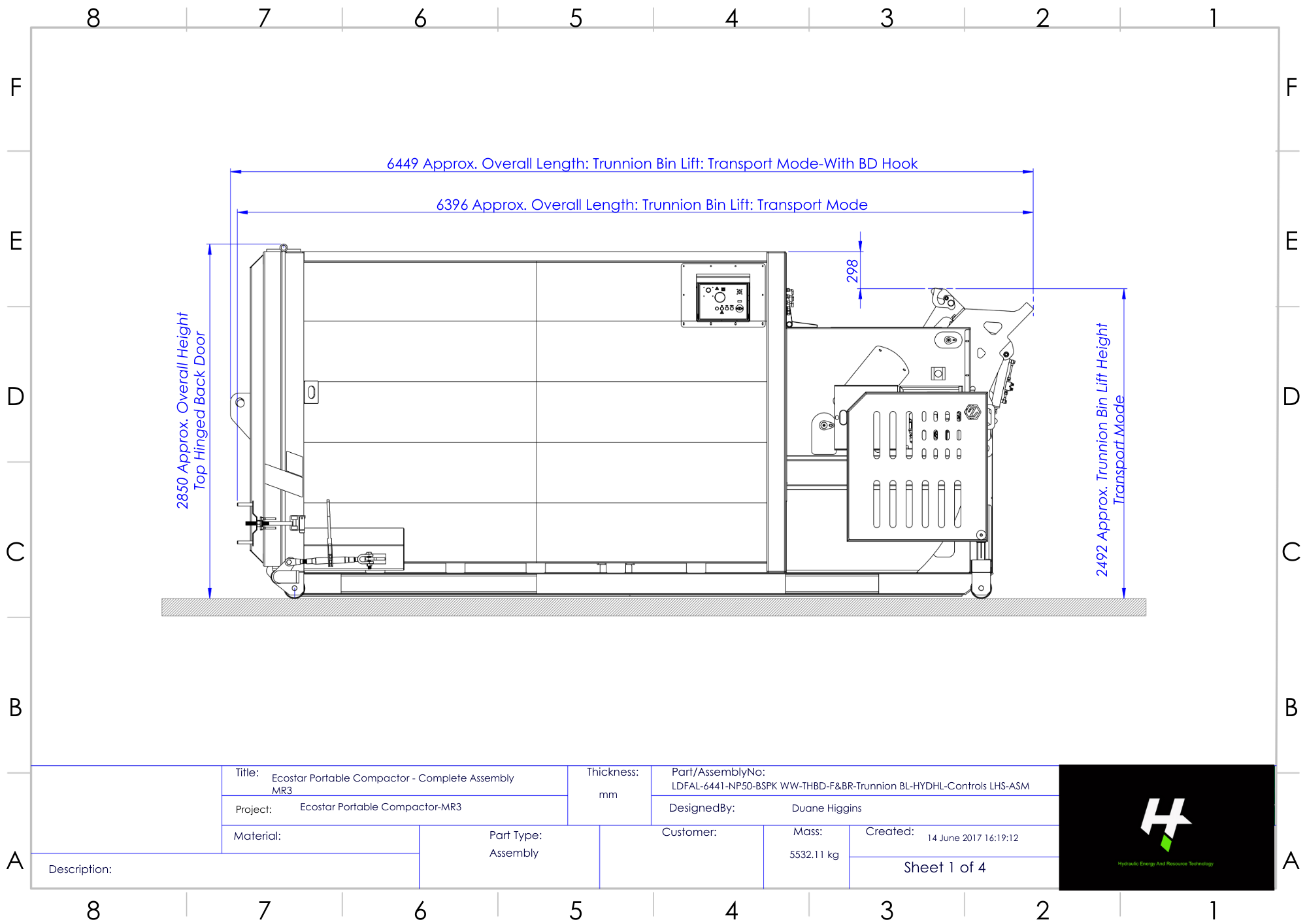

| Length | 7200 mm (Top Hinged Back Door, Bin Lift Guards Down) |

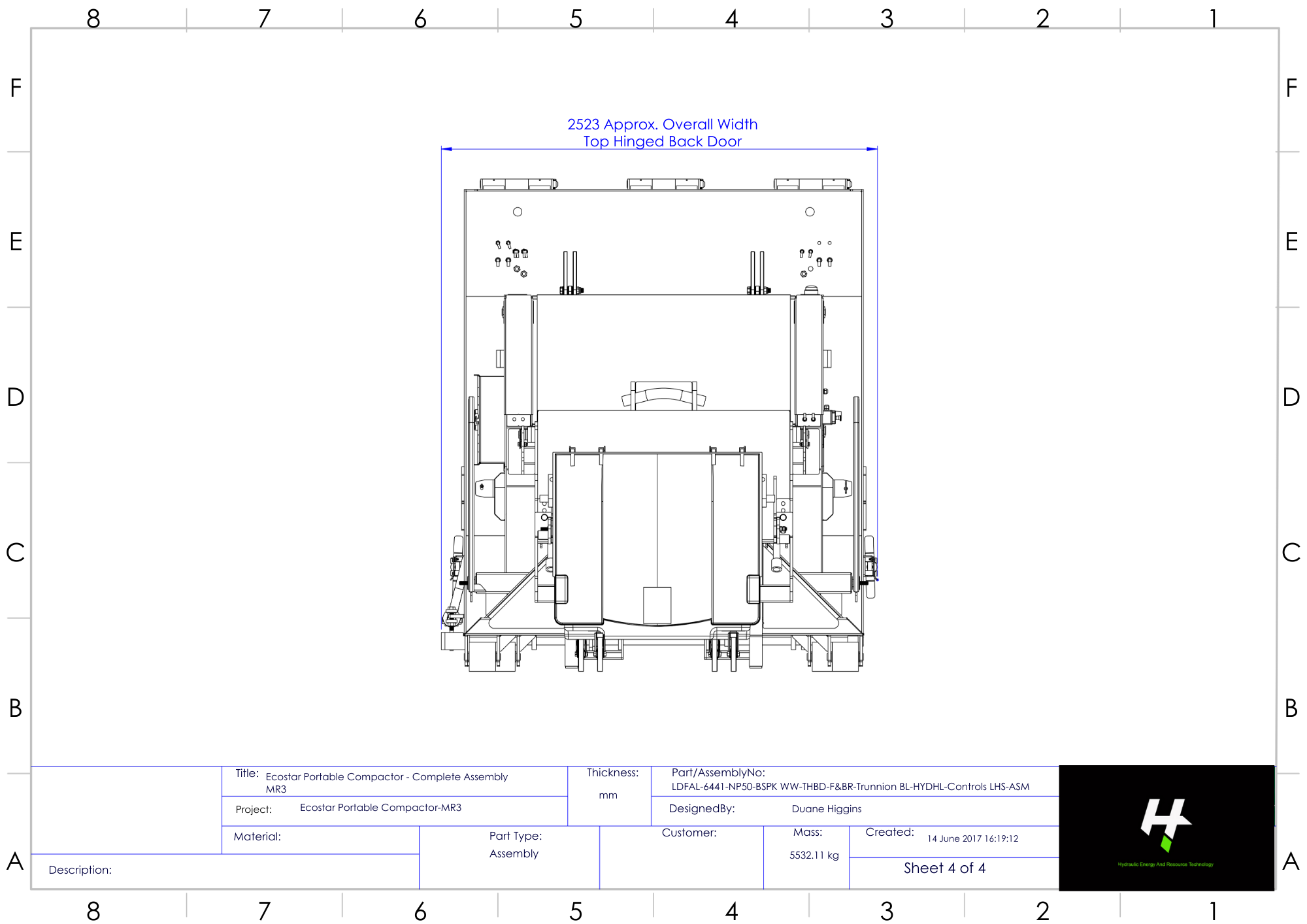

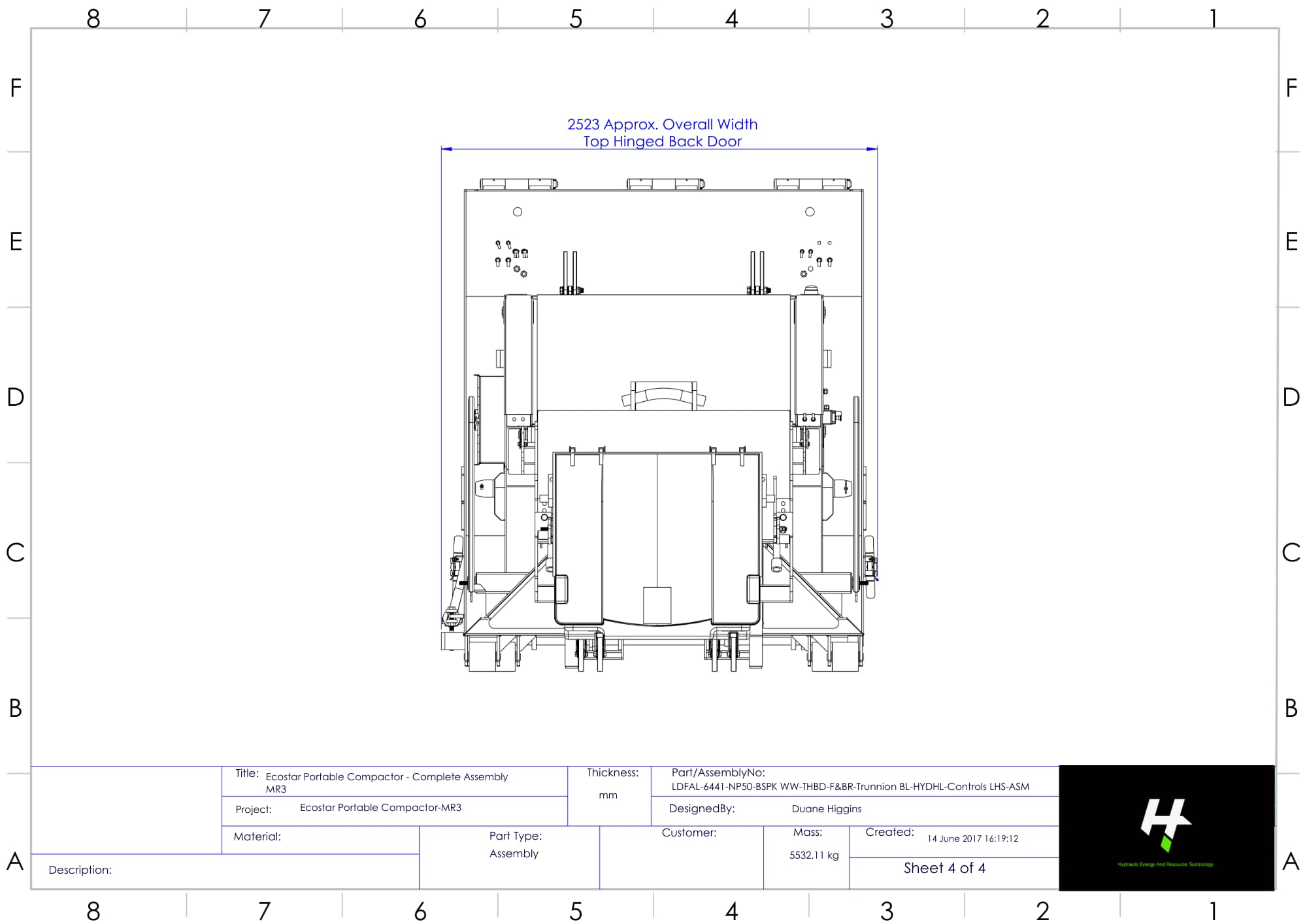

| Width | 2523 mm (Top Hinged Back Door) |

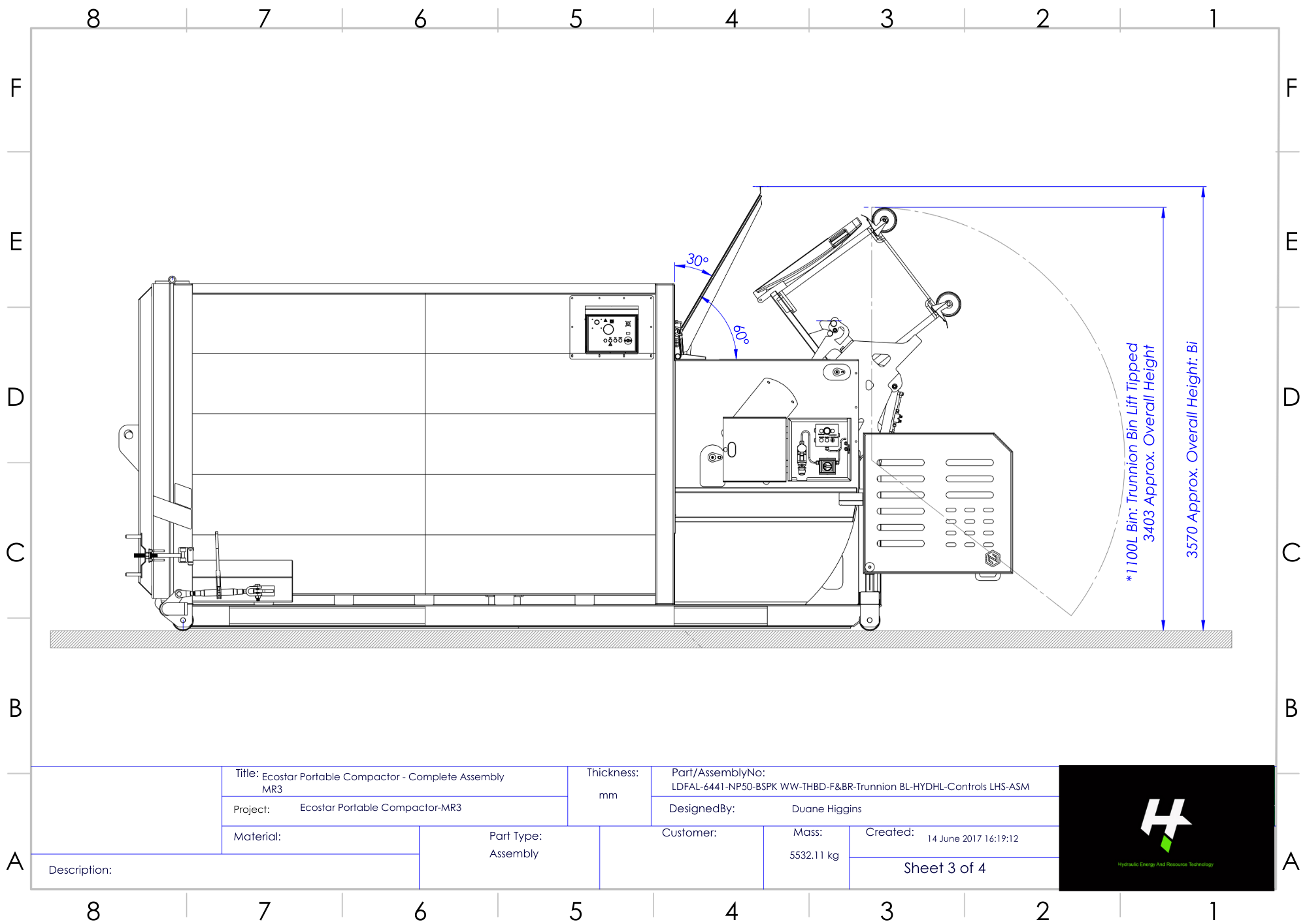

| Height | 2850 mm (Top Hinged Back Door) 3658 mm Overall Height (Hydraulic Lid & 1100L Bin Tipped) |
| Machine Weight | 5500 kg |
| Running Pressure | 1600 PSI |
| Head Face Area | 0.75 m² |
The Poseidon Wet Waste Portable Compactor with WW Trunnion Bin Lift is a robust and high-capacity waste management solution designed specifically for handling wet and food waste. Combining compaction and storage within a single sealed unit, it helps reduce waste volume while maintaining excellent hygiene standards across your site.

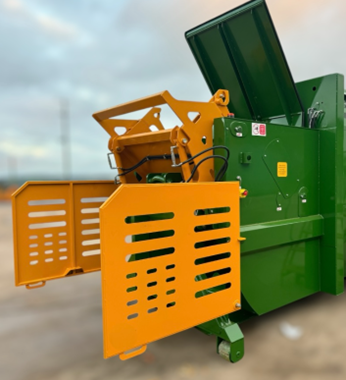

This model is equipped with a WW trunnion bin lift system, designed to safely and efficiently handle compatible bins. The lifting mechanism reduces manual handling, improves operator safety, and ensures smooth, controlled emptying of bins into the compactor, making it ideal for busy environments.
The enclosed design is perfectly suited for wet waste applications, helping to contain liquids, minimise odours, and prevent leaks. This makes the model particularly effective in sectors such as hospitality, food production, healthcare, and retail, where hygiene and cleanliness are essential.
